MONO SUPPLIES
TEL-1024

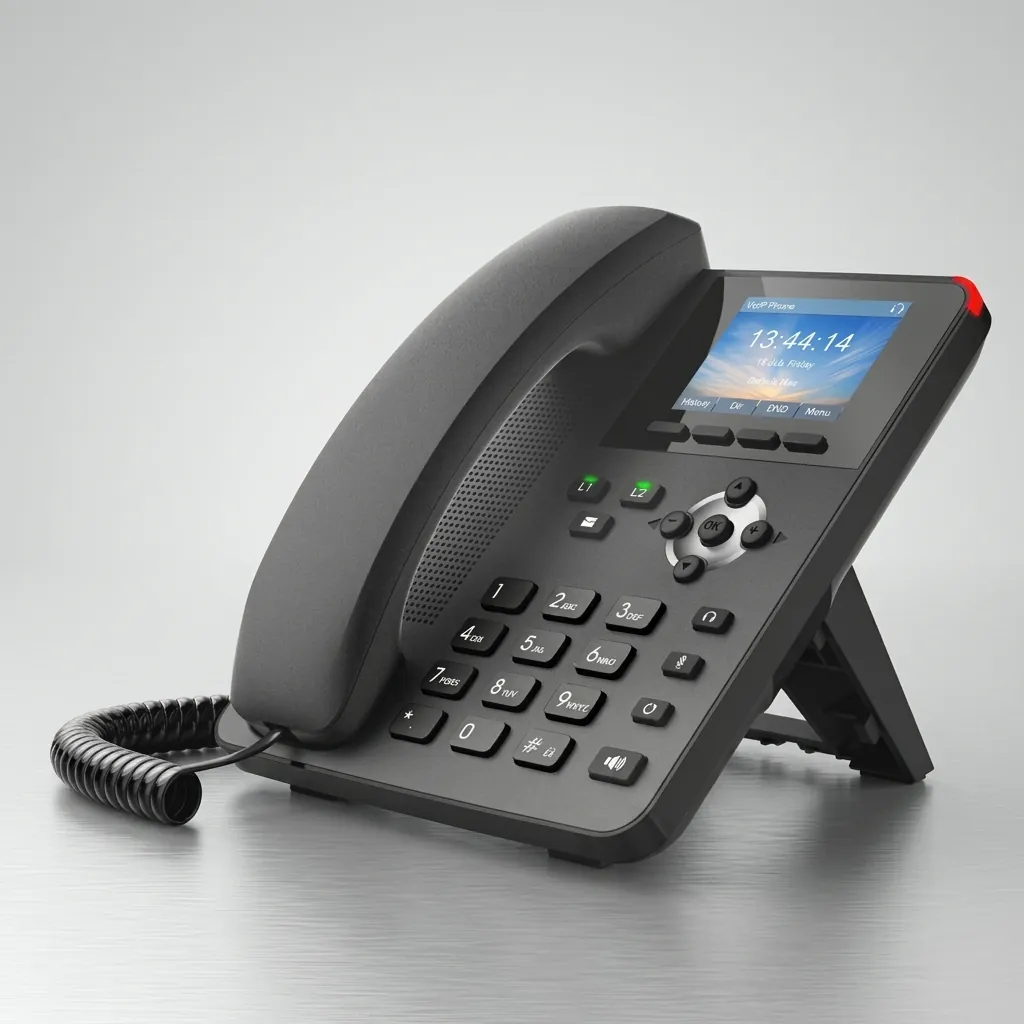

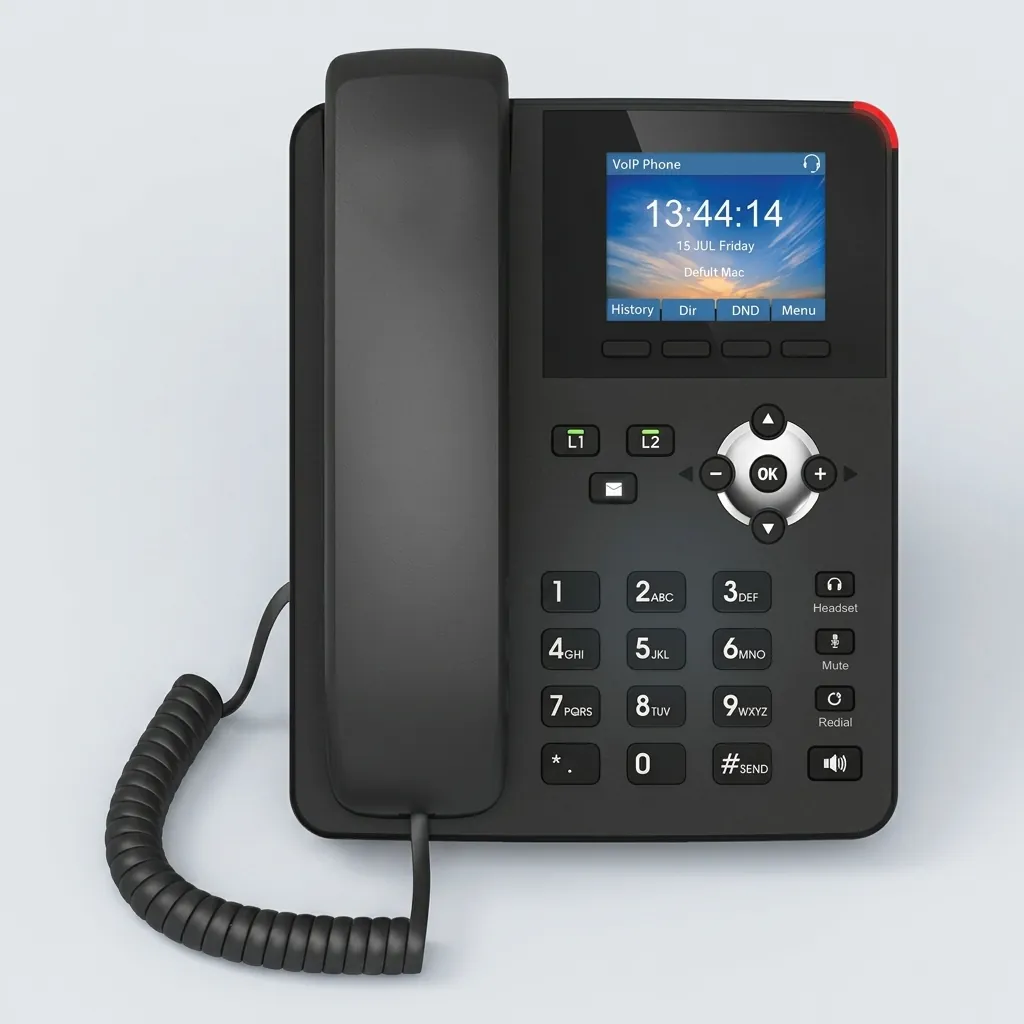

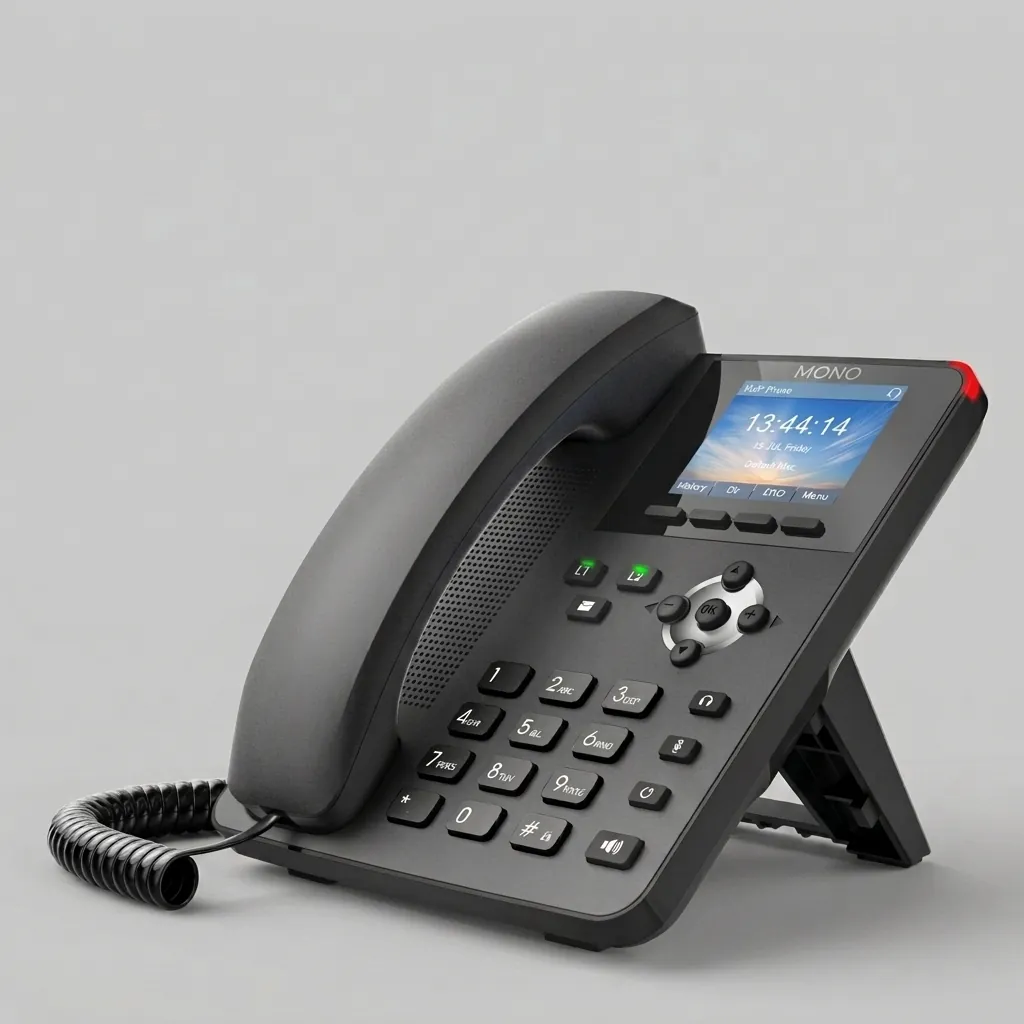

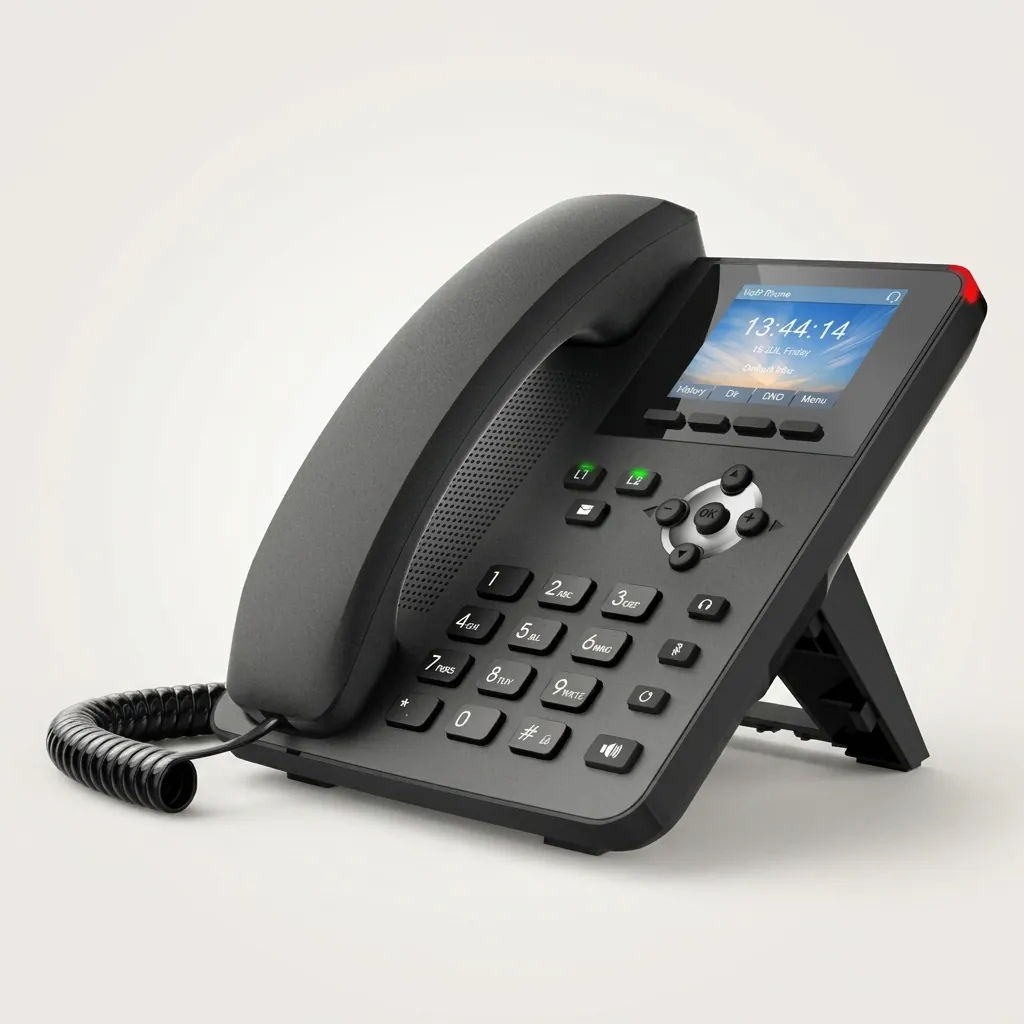

IP Telephone with PoE
An IP desk phone with two SIP lines, HD voice and PoE for simple, single-cable installation. A colour display and handset, speakerphone and headset modes support full call handling, including transfer, forwarding, intercom and do-not-disturb. Wall-mountable with an optional external power supply, in black or white.
Available Colors— leave item note in cart to select color
Black
White
Premium Quality
Warranty Upto 2 Years
Verified Safety
Fast Logistics
General Characteristics
2 SIP Lines HD Voice POE Enabled Color Display Handset / Speakerphone / Headset Mode Wall Mount Optional External Power Supply
Call Features
Call / Answer / Reject Mute/Unmute (Microphone) Call Hold/Resume Call Waiting Intercom Caller Number Display Speed Dial Anonymous Call (Hide Caller ID) Call Forwarding (Always / Busy / No Answer) Call Transfer (Attended/Unattended) Parking Call/Pick-Up (Depending On Server) Redial/Auto Redial Do Not Disturb Autoresponder Voice Message (On Server) Tripartite Conference Hotline Hot Desking
Phone Features
Local Phone Book (500 Entries) Remote Phone Book (XML/LDAP, 500 Entries) Call Logs (Logged In / Out / Missed, 600 Entries) Call Filtering to Black / White List Programmable DSS / Soft Keys Plantronics Wireless Headset Support (Via Plantronics APD-80 EHS Cable) Jabra Wireless Headset Support (Via Fanvil EHS20 EHS Cable) Recording Support (Via Server Recording) Action URL/Active URI uaCSTA
Audio
Voice Microphone / HD Speaker (Handset / Handsfree, 0~7KHz) Wideband ADC/DAC Sampling 16 kHz Narrowband Codec: G.711a/u, G.723.1, G.726-32K, G.729AB, AMR, iLBC Wideband Codec: G.722, AMR-WB, Opus(16KHz) Full Duplex Acoustic Echo Canceller (AEC) Voice Activity Detection (VAD) / Comfort Noise Generation (CNG) / Background Noise Estimation (BNE) / Noise Reduction (NR) Packet Loss Concealment (PLC) Dynamic Adaptive Jitter Buffer Up to 300ms DTMF: In-Band, Out-of-Band - DTMF Relay (RFC2833) / SIP INFO NET 10/100 Mbit/s Ethernet, Dual PC Port IP Configuration: Static/DHCP/PPPoE Network Access Control: 802.1x VPN: L2TP/OpenVPN
Vlan
QoS
Protocols
SIP2.0 over UDP/TCP/TLS
Dhcp
PPPoE
Lldp
802.1x
L2tp
OpenVPN
Deployment and Maintenance
Automatic Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP OPT66 / SIP / PnP / TR-069 Web Management Portal Web Package Export / Import Configuration Import / Export Phone Book Firmware Update System Log
Physical Characteristics
LCD
2.4" (320x240) Color LCD Display Keyboard: 28 Keys, Including 4 Soft Keys 4 Function Keys (MWI, Mute, Headset, Redial) 4 Navigation Keys OK 1 OK Key 12 Standard Telephone Digits 2 Line Keys 1 Speakerphone Key HD Phone (RJ9) x1 Standard RJ9 Wire for Phone x1 1.5m CAT5 Ethernet Cable x1 Rear Rack x1 RJ9 Port x2: Handset x1, Headset x1 RJ45 Port x2: Network x1, PC x1 (Network Connected) DC Input: 5V/0.6A Power Consumption: Idle 0.9~1.65W,Peak 1.8~2.95W Working Temperature: 0~40℃ Working Humidity: 10~95% Installation: Desktop Stand / Wall Mount Black Color
Device Dimensions
Table Stand (1 Corners)
164.3x161.7x160.1mm Table Stand (2 Corners): 164.3x179x139.6mm
Complete the Suite
Synchronized Essentials from this collection

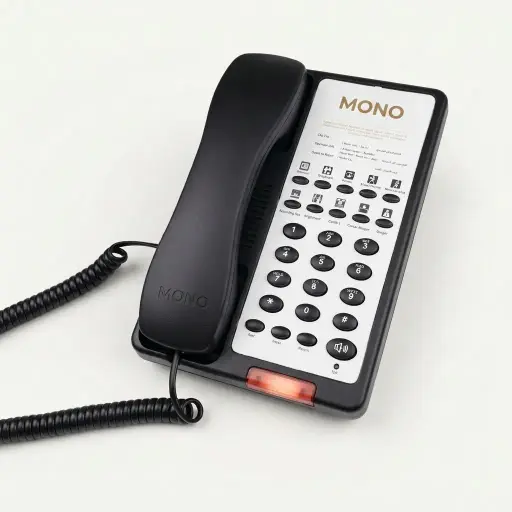

![Hotel Desk Telephone with One-Touch Buttons [1026] — TEL-1026 — A hotel desk telephone with a customisable logo panel and one-touch service buttons for fast guest dialling. Compatible with major PABX systems, it offers 14-digit memory, adjustable flash time, dual-tone ringing and music on hold. Desk or wall mountable with a data socket, finished in black.](https://zyowaodxwulfcyvnrpdx.supabase.co/storage/v1/object/public/product-images/TEL-1026/TEL-1026-3_mono_branded_thumb.webp)
